Administration Model
Contents
Introduction
HyTrust KeyControl supports three distinct administrators, each with distinct privileges. Roles can be combined in any manner. A small organization may have an administrator with all roles. A Cloud Service Provider who manages multiple customers may have different VM Set administrators for different customers: Domain Administrators managing the hardware/storage, and Security Administrators who provide oversight. Companies who are using HyTrust KeyControl to manage VMs in the public cloud or other environments may have multiple Cloud Administrators, each managing a set of VMs.
The following figure shows the three different administrative roles.
Security Administrators can perform the following tasks:
- Create and delete users.
- Assign / revoke privileges.
- Disable / enable accounts.
- Edit default settings such as the password expiration time, length of passwords, and how long accounts are active.
- Install the initial and subsequent license keys.
- See all activity in the system but do not see any objects (VMs, storage, encryption keys).
Domain Administrators can perform the following tasks:
- Install and set up new hardware.
- Authenticate new KeyControl nodes.
- Manage software updates.
- Restore a KeyControl cluster.
Cloud Administrators can perform the following tasks:
- Create and manage Cloud VM Sets.
- Create certificates associated with a Cloud VM Set, and assign them to VMs.
- Install HyTrust DataControl Policy Agent software on Linux and Windows servers and register the VMs.
- Specify the boot time properties of VMs.
- Revoke access to VMs or individual devices resulting in a force unmount of the filesystem and removal of access to the data.
- Create encryption keys (KeyIDs) that can be shared with the VMs in the same Cloud VM Set in order to encrypt and decrypt files.

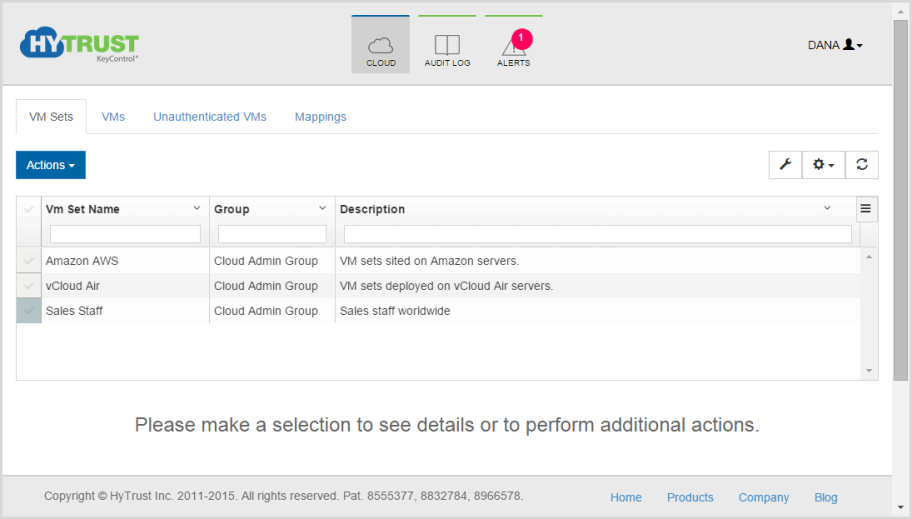

When the system is installed, there is a single user created called secroot, who has all three roles. Each navigation icon is only visible to administrators who have the appropriate roles. Below you see the navigation icons for an administrator with cloud privileges, but nothing more:
And then we see an security administrator who has access to all privileges, including cloud privileges:
The secroot user cannot be removed but Domain and Cloud Admin privileges can be removed. The name "secroot" cannot be changed.
Administrative Groups
All objects in a HyTrust environment are owned by groups. For example, Cloud VM Sets are assigned to a Cloud VM Set group rather than an individual user. In multi-tenant systems, having a single user can cause problems if that user has sole access to specific parts of the system and refuses to hand over passwords if the user leaves the company. Having two more users in each group prevents this problem from occurring.
Examples of where groups come into play:
- Alerts are posted to groups.
- Logging / auditing information is visible on a group-by-group basis.
- Each KeyControl node is a member of the default KeyControl Admin Group.
- If Cloud VM Sets for different customers require separate administrators, you should create multiple groups and separate the admins into these groups. Each administrator will only get access to VM information that belongs to his or her group.
When the system is installed there are two default groups created, as shown below:
The groups can be changed and additional groups can be created.
- The Cloud Admin Group is used as a container for Cloud VM Sets. When Cloud VM Sets are created they are placed in a Cloud Admin Group. In a multi-tenant environment, unique Cloud Admin Groups will be created for each tenant. Within their respective groups, they can create any number of Cloud VM Sets. For example, if Company-A and Company-B are sharing the KeyControl cluster, one could create a Cloud Admin Group called "Company-A VMs" and one called "Company-B VMs." Administrators for Company-A will be placed in the "Company-A VMs" group and administrators for Company-B will be placed in the "Company-B VMs" group. Company-A administrators will not be able to see any objects owned by Company-B and vice-versa.
- The KeyControl Admin Group is used for all KeyControl cluster operations.

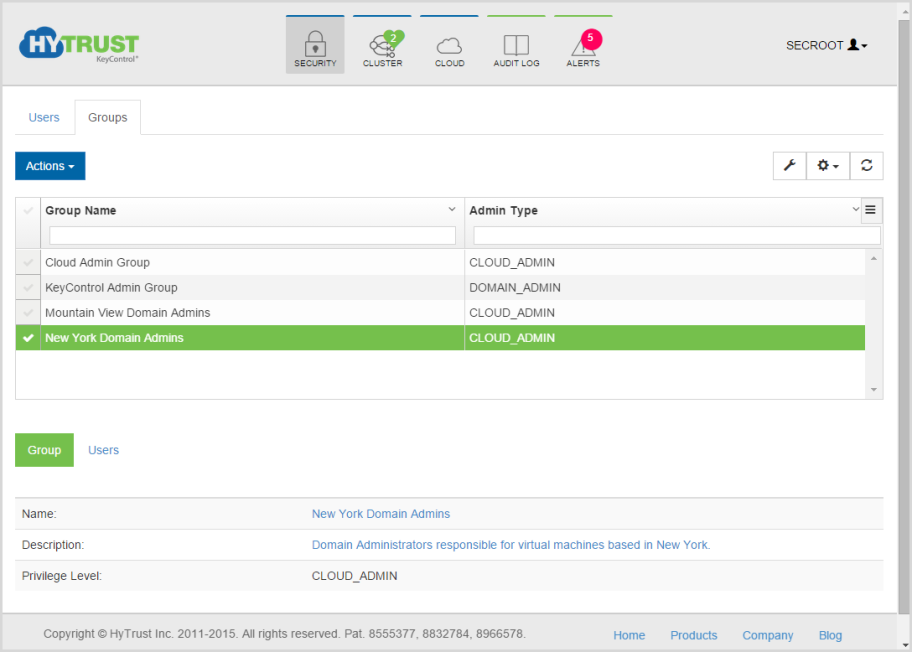

The names of these default groups can be changed easily. Just check to the left of the group name, and edit the group name or description in the Details screen.
The system is fully functional with just these groups. Remember, you can easily sort and search for groups through the grid: Using the Grid to Find and Edit Material.
