Boundary Controls
The Boundary Controls feature utilizes Policy Rules and constraints in HyTrust CloudControl® (HTCC) to authenticate and authorize delivery of encryption keys for the data encrypted by HyTrust DataControl and managed by HyTrust KeyControl.
HTCC has fine-grained knowledge of all of the virtual machines in an enterprise. When Boundary Controls are enabled, HTCC coordinates with KeyControl to ensure that policy-based boundaries are maintained in that enterprise. Examples include:
- Geofencing: Privacy laws often require that sensitive data gathered in one country be unavailable in other countries.
- Organizational boundaries: The information that the finance department gathers should not be accessible in other departments.
- Regulatory compliance: Many companies are subject to regulations such as PCI, SOX, HIPAA, and so on. The configurations and controls for that data can be quite different from other data. In addition, auditability is often a key requirement.
This combination of two of HyTrust’s products responds to these needs by leveraging the capabilities of each product.
Enabling Boundary Controls

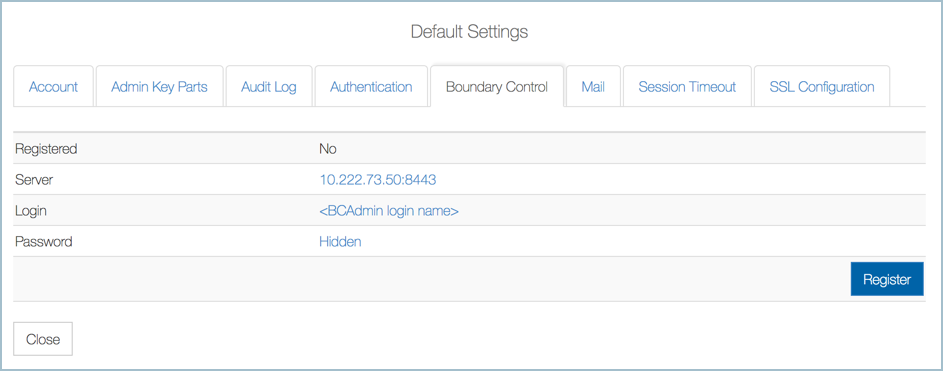

To enable Boundary Controls, click the Settings Icon and then click Boundary Controls. The Default Settings dialog box opens to the Boundary Control tab. Enter the requested information into the following form, and then click Register.
Details of the Boundary Control tab:
- Registered: Reflects whether or not this KeyControl cluster has an active registration with HyTrust CloudControl.
- Server: The IP address and port number for the server that manages the Boundary Controls registration, in the form of <IP address>:<port number>.
- Login: The login name of an HTCC user with the BCAdmin and the KeyDelivery privileges.
- Password: This is the area in which you enter the password for the BCAdmin account, enabling Boundary Controls access.
Enabling Boundary Controls on Virtual Machines
All virtual machines are configured as part of Cloud VM Sets. When VM Sets are created, you must decide at that point whether or not you want Boundary Controls enabled on each one. Once the VM Set has been created, you cannot change the Boundary Controls setting that was originally configured.
For more information on Boundary Controls, see the HyTrust CloudControl Documentation.
For more information on VM Set creation, see Overview of Cloud Operations and VM Sets, in the System Administrator's Guide.
See also: Using the Settings Icon to Configure Defaults, in the Guide to Using the WebGUI.
