Using the Dashboard

Clicking the Dashboard Icon brings up a graphic overview of your cluster's health, as shown below.

You can select which VM Sets you want to see statistics on, or you can choose them all, by clicking on the gear icon at the top of the table:

Once you have selected the VM Sets to review, you can then review them together, or zero in on any individual attribute.

You can view the following attributes:

• VMs Encrypted
• System Disks Encrypted
• Data Disks Encrypted
• Data Size Encrypted
• Unauthenticated VMs

The Dashboard then shows you graphical representations of each of the following topics:

• Policy Agent Version
• Policy Agent Health
• Virtual Machine OS
• Tasks running
• VM Certificate Expiration, with bar charts showing the number expiring over time
• VM -> KeyControl Mappings
• VM Encryption, with a chart of the number of VMs encrypted at various points in time
• Disk Encryption, with a chart of the number of disks encrypted at various points in time

With each chart, you can click on the chart itself to zero in on a more detailed view.

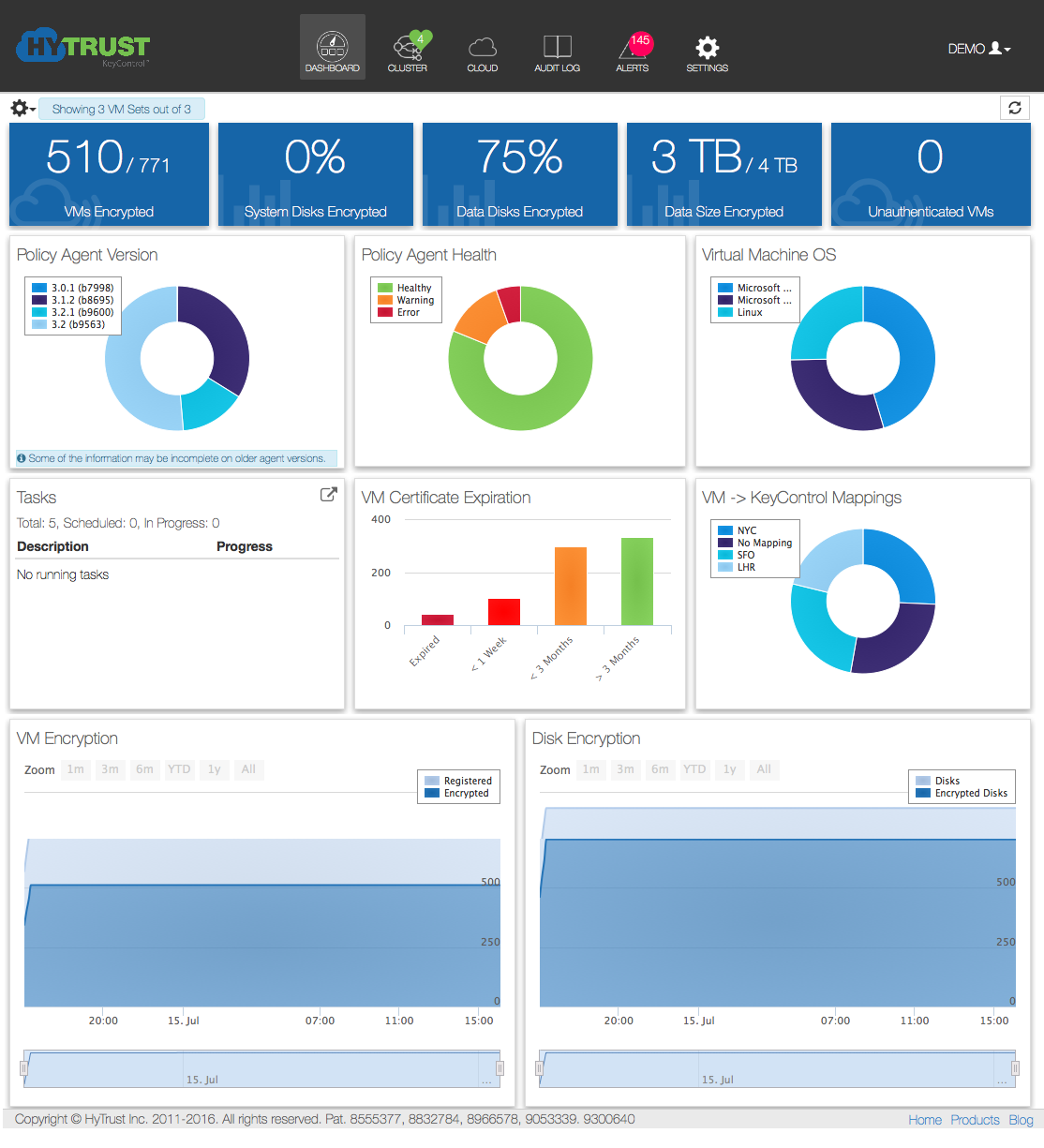

Here is the full Dashboard view:
