Using the Dashboard

The dashboard presents a graphical overview of your system, either for all your Cloud VM Sets or for a group of user-selected sets.

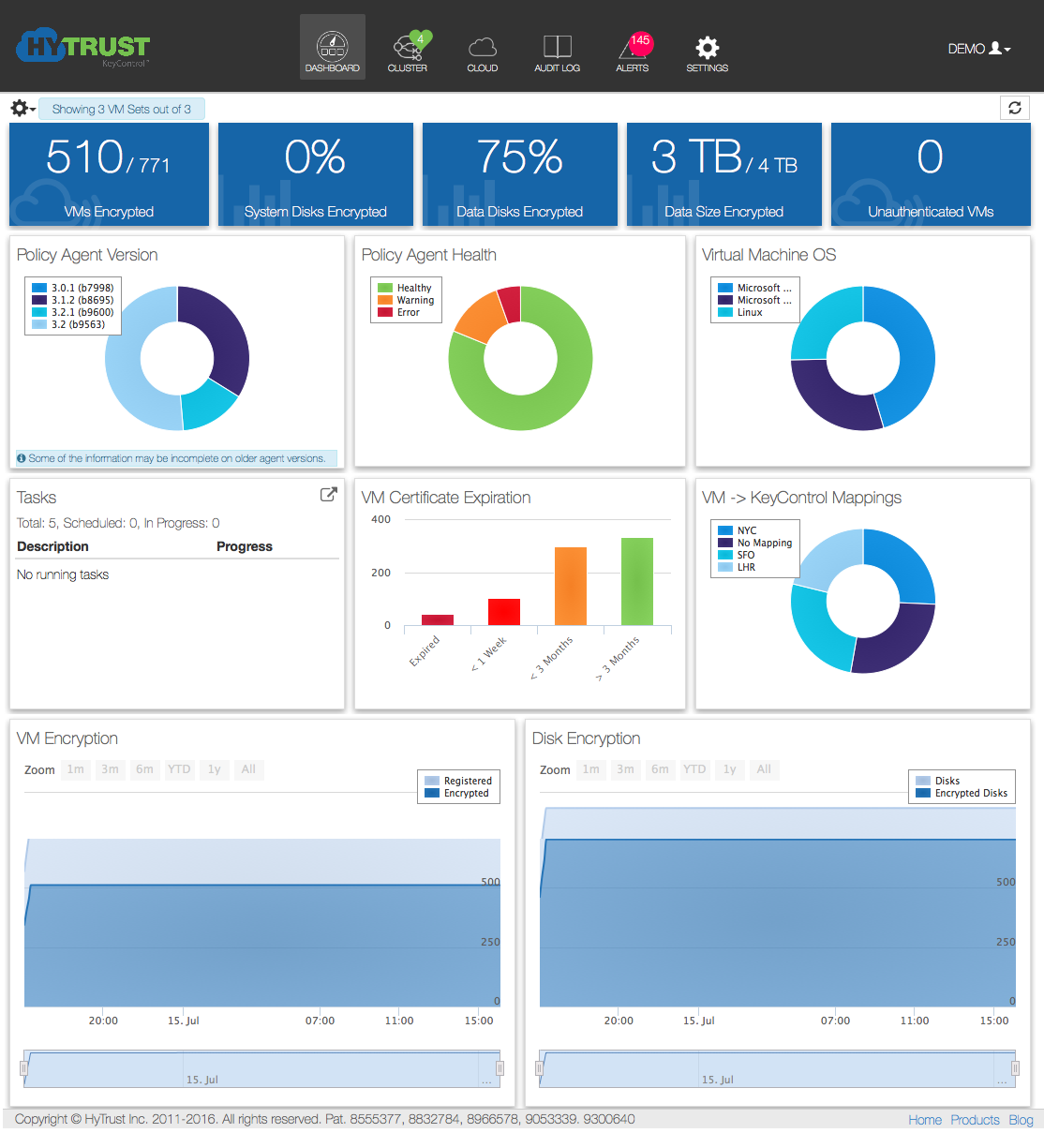

An example of the full Dashboard appears below:

Procedure

In the top menu bar, click Dashboard.
To limit the number of Cloud VM Sets displayed, click the gear icon at the top of the page and select the sets you want to view, then select Apply. The webGUI displays a message next to the gear icon indicating how many Cloud VM Sets you are viewing.
To view additional details for any chart in the Dashboard, hover over it with the mouse. For all charts except VM Encryption and Disk Encryption, you can also click on a chart to view a pop-up dialog box with the details presented in tabular format.
To view the pending task list, click the Expand icon in the upper-right-hand corner of the Tasks box.
